OTDR mini, OPM, OLS, VFL, Reflect a 60Km 10mw 20Km, SM 1310-1550nm, puerto UPC. Adapt FC SC, Mini Usb. Grtia Serial: 10d

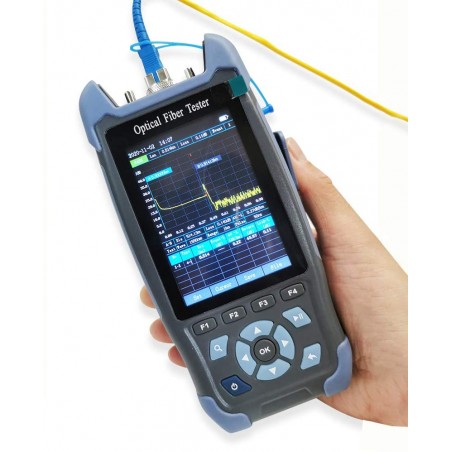

Mini multi-fuction OTDR has compact structure and stable performance.This OTDR test wavelength are 1310/1550nm,dynamic Range are 24dB/22dB. Measurement distance is 5m~60km.Suit for the G.652 optical fiber.It built-in OPM ( 8 standdard wavelengths 850/980/1300/1310/1490/ 1550/1625/ 1650nm);Built OLS 1310/1550nm;Built-in VFL 10Mw;Built-in RJ45 test .This Mini OTDR have most functions and most cost-effective on current market.

The application are mainly:maintenance and test of telecommunication line,cable manufacturer,test of FTTX.

Note:This Mini-OTDR Dynamic Range is 24dB/22dB (can't test spliter,if test the spliter,the Dynamic need more than 42dB). Before test or test result is not accurate,pls using the Alcohol cotton to clean the fiber connector.

Technical Specifications:

Mini-Pro OTDR

• Wavelength: 1310nm/1550nm±20nm
• Fiber Type: G.652
• Dynamic Range: 24dB/22dB
• Event Blind Zone: 3m
• ATT Blind Zone: 8m
• Test Range: 5m~60km
• Pulse Width: 3ns~10us
• Ranging accuracy: ±(1m+ Sampling interval +0.005％×Test distance)
• Loss accuracy: ±0.05dB/dB
• Sampling Points: 16k~128k
• Sampling resolution: 0.05m~8m
• Reflection accuracy: ±3dB
• Data Storage: Internal：≥600；External：TF Card
• Laser Safety Level: Class Ⅱ
• File format: SOR Standard file format
• Connector: FC/UPC（Interchangeable SC、ST）

OPM

• Wave Range: 800nm~1700nm
• Interface Type: Universal Joint FC/SC/ST
• Test Range: -50dBm～+26dBm
• Uncertainty: ±5%
• Frequency Identification: CW/270/330/1k/2kHz
• Calibration wavelength: 850/980/1300/1310/1490/1550/1625/1650nm
