Empalmadora Fibra SM, MM, Lcd 5" 6 Motor Kit 5 Tools, PowerMeter VFL Integrado 1par electrod 3KS, 1Carg, Bat 7800mAh

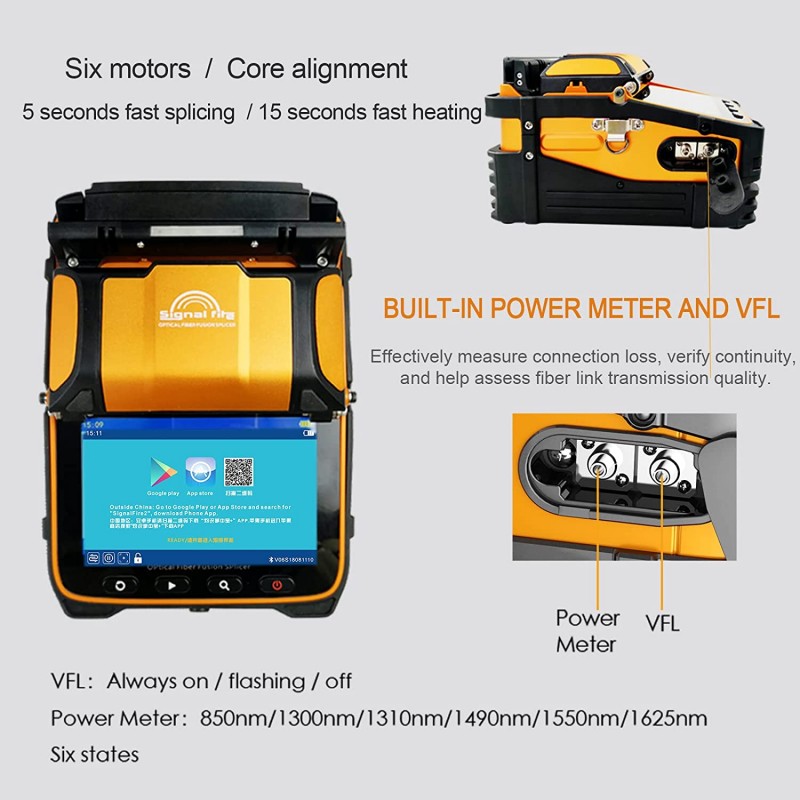

Ai-9 Optical Fiber Fusion Splicer Features

• With 5-inch 800X480 high-resolution screen, is up to 300 times focus magnifications;
• Built-In Power Meter & VFL,
• Six motors Core alignment,fusion splicer core to core 6 motors 6 seconds splicing.
• 3 In 1 Fiber Holder suit for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable;
• Splice Loss:0.025dB(SM)、0.01dB(MM)、0.04dB(DS/NZDS);
• Fiber diameter:Cladding Diameter：80-150μm、Coating Diameter：100-1000μm;
• Fiber Cleave Length:Coating less than 250µm：8-16mm、Coating less than 250-1000µm:16mm.
• Through the phone app,splicing is easy to operate.
• You can learn various operration in the APP,as well as update the mobile app and connect to the machine to synchronizes update.
• The mobile phone is not needed when splicing.
• The mobile APP can be used to turn on/off the machine menu,ARC calibration ,remote control,smart lock,etc.
• Languages ：English、 French、Spanish、Portuguese、Polish、 Arabic、Russian, etc.

Ai-9 Optical Fiber Fusion Splicer Features

• Built-in battery:7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours,continuous splicing and heating about 200 times.
• Fiber holders:3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable.
• Applicable Fibers:SM(G.652&G.657)、MM(G.651)、DS(G.657)、NZDS(G.655).
• Splice Loss:0.025dB(SM)、0.01dB(MM)、0.04dB(DS/NZDS). Return loss:Better than 60DB.
• Shrinkable tube:60mm、50mm、40mm、25mm.
• Fiber diameter:Cladding Diameter：80-150μm、Coating Diameter：100-1000μm.
• Fiber Cleave Length:Coating less than 250µm：8-16mm、Coating less than 250-1000µm:16mm.
• Control technology:Real-time control and calibration of fusion ARC.
• Splicing record storage:Synchronize to the phone, the server to cloud storage unlimited.
• Software updates Length:Automatically update、 Update by a key.Boot time:1 second
• Power supply:Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power.
• Operating Conditions:Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s.
