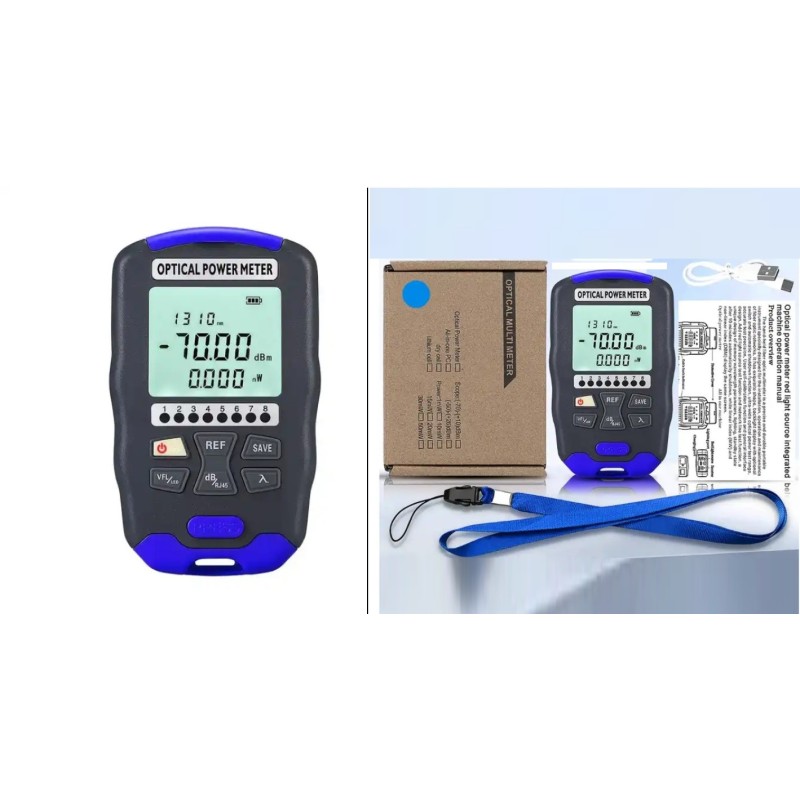

Optical Powermeter, Lan Tester Rj45, 10x Wavelengths, -70dBm~+10dBm. 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm. NO G

@aaredesca

Product characteristics:

• support lighting
• support automatic shutdown
• support backlight switch
• support 500 Test wavelength memory
• support user calibration
• supporting simultaneous display of linear mW and non-linear index dBm
• supporting SC/FC/ST interface
• supporting external power supply such as charging treasure, computer. etc.
• supporting simultaneous linear (mW) and non-linear (dBm) display
• supporting RJ45 testing
• Usb battery rechargable

Specification

• Calibration Wavelength: 800~1650nm
• Optical Connector:FC/SC/ST universal interface
• Detector Type: InGaAs
• Measurement Range: -70 ~ 10dBm
• Accuracy: ±0.05dB
• Standard wavelength: 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm
• Display resolution:mW:0.1% ,dBm:0.01dBm
• Working temperature:-10~+60℃
• Storage temperature :-30~+70℃
• Auto off time:10Min
• Battery continuous operating time:≥72h
• Dimension(mm): 11.2x6.6x3cm
• Weight: 140g
