Patch Cord CAT 6, 1m Netkey Panduit Rojo
https://www.panduit.com/en/products/copper-systems/patch-cords-accessories/patch-cords/nk6pc3rdy.html

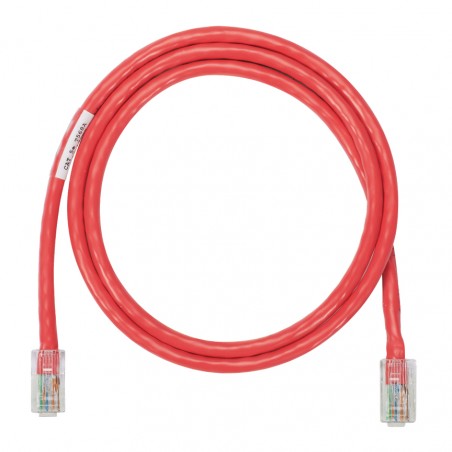

The NetKey® Cat 6 UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord’s slender strain relief boot provides easy access in high-density applications. The patch cord is 3 feet in length and red.
Delivery policy (edit with Customer reassurance module)
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digital video and broadband/baseband analog video (4) Voice over Internet Protocol (VoIP) | ||||||||
| Product Type | Patch Cord | ||||||||
| Conductor Gauge (AWG) | 24 | ||||||||
| Conductor Gauge (kcmil) | 0.4 | ||||||||
| Performance Level | Category 6 | ||||||||
| Conductor Type | Stranded | ||||||||
| Cable Construction | U/UTP | ||||||||
| Patch Cord Type | Unshielded | ||||||||
| Plug Housing Material | Polycarbonate | ||||||||
| Jacket Material | Polyvinyl Chloride | ||||||||
| Connector 1 Type | Modular Plug | ||||||||
| Connector 2 Type | Modular Plug | ||||||||
| Overall Length (ft.) | 3 | ||||||||
| Sub Brand | NetKey® | ||||||||
| Nominal Cable Outside Diameter (In.) | 0.235 | ||||||||
| Wiring Scheme | T568B | ||||||||
| Operating Temperature (°F) | |||||||||
| Maximum - Minimum | 140 / 14 | ||||||||
| Storage Temperature (°F) | |||||||||
| Maximum - Minimum | 158 / (-40) | ||||||||
| Boot Color | Clear | ||||||||
| Color | Red | ||||||||
| Flammability Rating | CM | ||||||||
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes. | ||||||||
| IEC Variant | 60603-7 | ||||||||
| PoE Compatibility | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++) | ||||||||
| Plug Type | 8 Position | ||||||||
| Part Features | 100% performance tested, Patented tangle free latch, Slender strain relief boot, Identification and Variety of color and lengths available | ||||||||
NK6PC3RDY
